Linklite LED 240V
Model #: LL-LED-240VLighting long stretches of road, rail track or tunnel is now easier and more affordable than ever with the Linklite LED temporary lighting system.
Share
Complies with
Robust Lighting for Demanding Work Sites
Our heavy-duty linkable floodlights are daisy chained together to provide powerful LED lighting for large-scale engineering projects.
Proven Portable Lighting Solutions
Used daily on major infrastructure works, Linklite is essential for site workers who need reliable floodlighting to get the job done.
Solve Your Long Distance Lighting Headaches
Whether your work site spans metres or miles, avoid expensive, bulky lighting equipment and reap the benefits of using super efficient Linklite LEDs on your next project.
Powerful Floodlights with Enormous Energy Savings
With incredible cost savings of over 80% compared with tower lights, Linklite LED is the most cost effective way to brighten your work site.
Linklite - Trusted by the Biggest Names in the Industry
Don't take our word for it.
They say actions speak louder than words...
these customer videos say more than we ever could.
Go Further with Linklite LED
Linklites can be connected together to illuminate up to 500 metres of rail track, road, or tunnel from a single 2kVA generator.
Temporary lighting can be a complicated and costly aspect for many engineering projects, especially if your scheme spans several hundred metres - or even miles.
With Linklite LED it's possible to deliver clear, bright floodlighting to large-scale work sites using a single power source.
Features & Benefits
- Ultra Bright High Power LED Lamps
- Linkable for Long Distance Work
- Lightweight & Stackable
- Wall or Mast Mountable
- IP44 Wet Location Rated
- Cool / Daylight Colour Temperature
- Heavy Duty Protective Lens Casing
Save over 80% in running costs
Compared to a standard 4000W light tower, a string of Linklites will light the same distance for less than one fifth of the running cost.
Find out how much you could save by switching to Linklite.
This tool will help you calculate the number of Linklites required to floodlight the same distance as your existing lighting equipment.
What you'll need to get started:
- The Wattage of your equipment
- The linear distance covered by your existing equipment
- The length of your work site

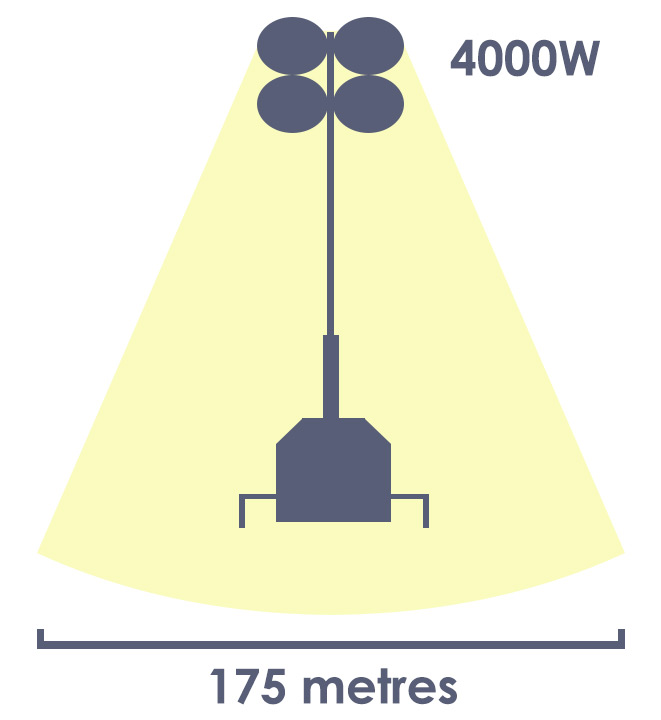

For example an average light tower uses 4000W and is capable of illuminating a linear distance up to 175 metres.

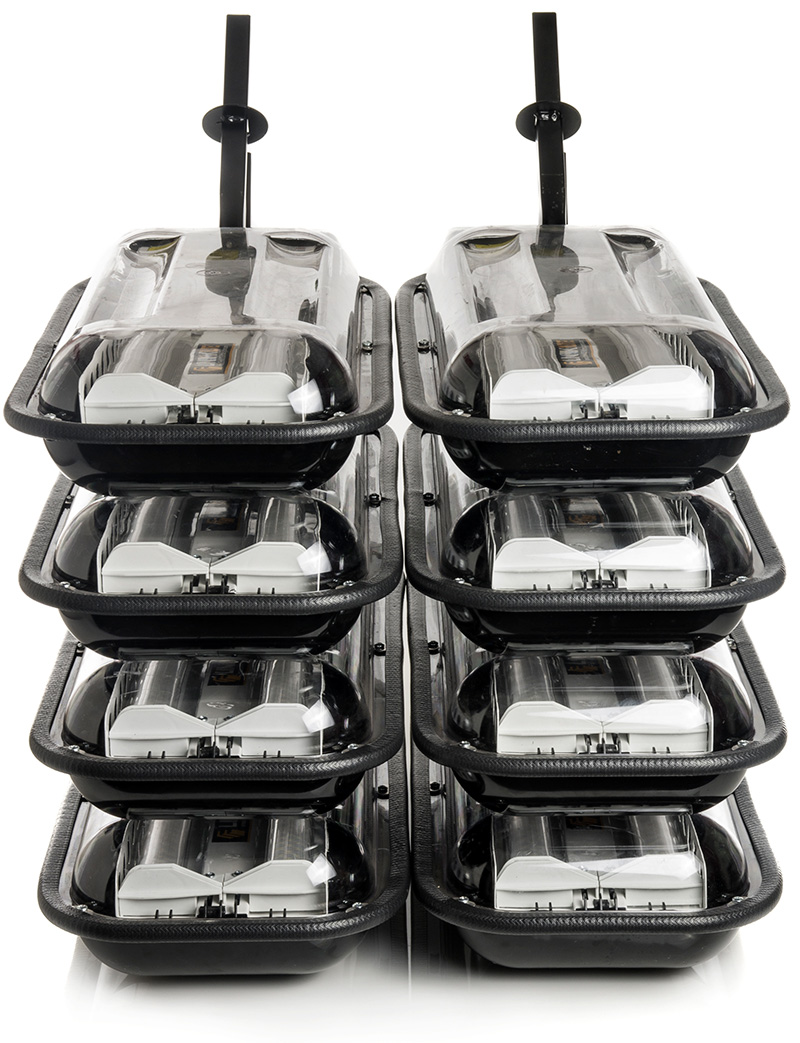

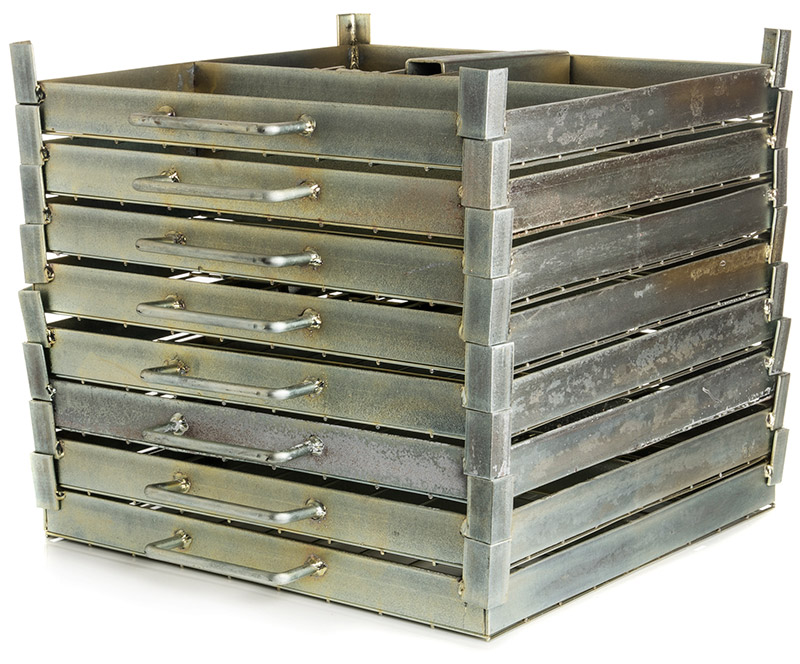

Stackable Components
The luminaire, telescopic mast and steel basket all detach and stack for easy transportation and convenient storage.
Water, dust and shock resistant

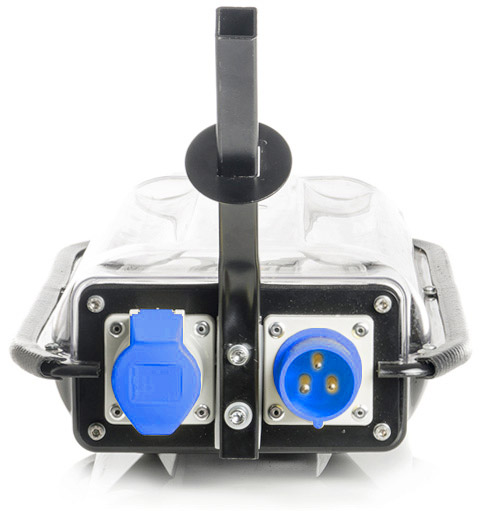

Linklite features industry standard 240V 16A IP44 pin and sleeve connections which are wet location rated for outdoor use.
Combined with our highly durable polycarbonate lens casing, Linklite is also dust and shock resistant making it the ideal choice for construction site lighting.
Specifications
| Rated Voltage | 240V |
|---|---|
| Rated Wattage | 30W |
| Rated Current | 0.28A |
| IP Rating | IP44 |
| Lamp Lumens | 4000 |
| Lamp CCT | 6500K |
| Plug / Connector | IEC 60309 |
| Luminaire length | 54.6 cm |
| Luminaire width | 27.3 cm |
| Luminaire height | 13.5 cm |
| Luminaire weight | 3.3 kg |
| Complies with | AS/NZS 60598.1:2013 AS/NZS 60598.2.4:2005 +A1 IEC 60598-2-4:1997 / EN 60598-2-4:1998 IEC60598-1:2014 / EN 60598-1:2015 IEC/EN 62031:2008 + A1:2013 EN 62741:2008 |
Downloads
| Name | Size | |
|---|---|---|
| Data Sheet (PDF) | 318 KB | Download |
| Photometric (IES/LDT) | 11 KB | Download |
| ASA Approval Certificate (PDF) | 161 KB | Download |
Accessories
 |
LL-CAB45-240V | 240V Link Cable |
 |
LL-MST-AL | Aluminium Mast |
 |
LL-BSK | Basket Base Stand |
 |
LL-GS | Ground Spike |
